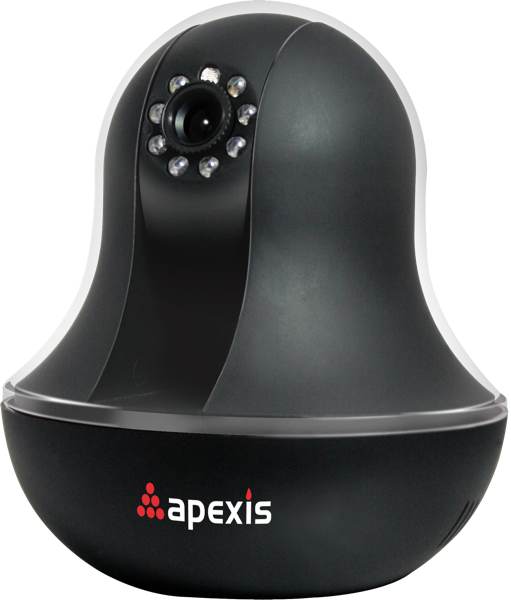

Description (MODEL : APM-J805-WS-IRC) - Black

New Feature:

• Iphone APP downloadable (app: Apexis IP Control)
• Support Gmail/Hotmail function
• 15 preset positions monitoring
• Free DDNS for Remote viewing
• Freely control alarm sound ON/OFF
• Freely control alarm record ON/OFF
• Up to 13 languages for worldwide users
• Support VLC mode
• Support MSN feature

Basic Feature:

• MJPEG video compression format
• Built-in Microphone and Speaker
• Support two-way audio function
• Freely control upload image to FTP
• Freely control Pan/Tilt angle by software
• Freely control Pan/Tilt speed by software
• Freely control network indicator LED on/off
• Support up to 9 users online simultaneously
• Motion detection alert with snapshots via email
• Allow remote view & record from anywhere anytime
• Multi-level user management with password protection
• Wi-Fi compliant with wireless standards IEEE 802.11b/g
• Support both WEP & WPA WPA2 encryption for wireless
• Support Mobile phone login from User Interface via browser directly
• Support IE, Safari, Firefox, Google chrome browser or any other standard browsers

Specifications

Image Sensor:

• Image Sensor 1/4" Color CMOS Sensor
• Display Resolution 640 x 480 Pixels (300k Pixels)
• Lens f: 3.6 mm, F: 2.0 (IR Lens) (6mm lens optional)
• Mini. Illumination 0.5 Lux
• Lens Type Glass Lens
• Viewing Angle 90 Degree (6mm lens is 60 Degree)
• IR CUT Filter Included

Audio:

• Input Built-in Microphone
• Output Built-in Speaker
• Audio Compression ADPCM

Video:

• Image Compression MJPEG
• Image Frame Rate 15fps (VGA), 30fps (QVGA)
• Resolution 640 x 480 (VGA), 320 x 240 (QVGA)
• Flip Mirror Images Vertical / Horizontal
• Light Frequency 50Hz, 60Hz, Outdoor
• Video Parameters Brightness, Contrast

Communication:

• Ethernet Interface 10Base-T/100Base-TX Ethernet Port
• Supported Protocol TCP/IP，DHCP，SMTP，HTTP，DDNS，UPNP，PPPoE, FTP, DNS
• Wireless Standard IEEE 802.11b/g
• Data Rate 802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.)
• Wireless Security WEP & WPA WPA2 Encryption

Physical:

• Pan/Tilt Angle Horizontal:350° & Vertical: 120°
• Infrared Light 8 IR LEDs, Night visibility up to 10 meters
• Alarm Input 1 Channel on/off Input
• Alarm Output 1 Channel relay Output
• Dimension 117(L) x 117(W) x 135mm(H)

Power:

• Power Supply DC 5V/2.0A (included AU-NZ adapter, other types optional)
• Power Consumption 6 Watts (Max.)

Environment:

• Operate Temper. 0° ~ 55°C (14°F ~ 131°F)
• Operating Humidity 20% ~ 85% non-condensing
• Storage Temper. -10°C ~ 60° (14°F ~ 140°F)
• Storage Humidity 0% ~ 90% non-condensing

Computer Requirements:

• CPU 2.0GHZ or above (suggested 3.0GHz)
• Memory Size 256MB or above (suggested 1.0GHz)
• Display Card 64M or above
• Supported OS Microsoft Windows 2000/XP/Vista/7
• Browser IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

Certification:

• CE, FCC, RoHS

Warranty:

• Limited 1-year warranty

What's Included

• Apexis Camera APM-J805-WS-IRC
• CD-Driver
• Network Cable
• Power Adapter
• Antenna
• User manual
