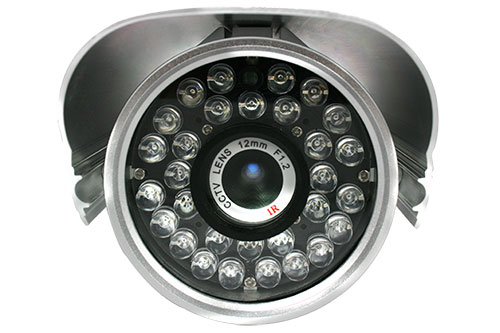

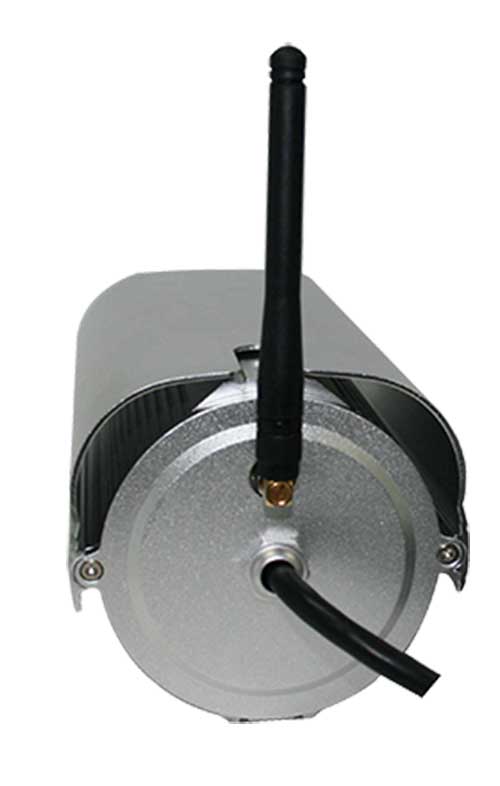

Description (MODEL: APM-H602-MPC-WS) - Silver

New Feature:

• 1.0 MegaPixel
• Support Gmail/Hotmail function
• Free DDNS for Remote viewing
• Freely control alarm sound ON/OFF
• Freely control alarm record ON/OFF

Basic Feature:

• Auto IR-LED illumination for night vision (up to 35 metres)
• H.264 video compression format
• Support two-way audio function
• Freely control upload image to FTP
• Support up to 9 users online simultaneously
• Motion detection alert with snapshots via email
• Allow remote view & record from anywhere anytime
• Motion detection alert with snapshots via email
• Multi-level user management with password protection
• Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
• Support both WEP & WPA WPA2 encryption for wireless
• Support Mobile phone login from User Interface via browser directly
• Support IE, Safari, Firefox, Google chrome browser or any other standard browsers

Specifications

Image Sensor:

• Image Sensor 1/4" Color CMOS Sensor
• Display Resolution 1280 x 720 Pixels
• Lens f: 6 mm, F:2.0 (IR Lens)
• Min. Illumination 0.5Lux
• Lens Type Glass Lens
• Viewing Angle 60 Degree

Audio:

• Input 1 channel audio input
• Output 1 channel audio output
• Audio Compression G.711

Video:

• Image Compression H.264, MJPEG
• Image Frame Rate 30fps(1080P),30fps(720P)
• Resolution Primary Stream: 1280*720 (30fps), 640*368 (30fps)，320*208 (30fps)
• Flip Mirror Images Vertical / Horizontal
• Light Frequency 50Hz, 60Hz or Outdoor
• Video Parameters Brightness, Saturation , Contrast ,Hue

Communication:

• Ethernet Interface Build in 10/100Mbps, Auto MDI/MDIX , RJ-45
• Supported Protocol TCP/IP HTTP DNS DHCP PPPoE SMTP FTP SSL TFTP NTP ARP/RARP NFS RTSP RTP RTCP
• Wireless Standard IEEE 802.11b/g//n
• Data Rate 802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.), 802.11n: 150Mbps (Max.)
• Wireless Security WEP & WPA WPA2 Encryption

Physical:

• Infrared Light 30 IR LEDs, Night visibility up to 35 meters
• Alarm Input 1 Channel on/off Input
• Alarm Output 1 Channel relay Output
• Dimension 175(L) x98(W) x98mm(H)

Power:

• Power Supply DC 12V/2.0A (included AU-NZ adapter; other types optional)
• Power Consumption 9 Watts (Max.)

Environment:

• Operate Temper. 0° ~ 55°C (14°F ~ 131°F)
• Operating Humidity 20% ~ 85% non-condensing
• Storage Temper. -10°C ~ 60° (14°F ~ 140°F)
• Storage Humidity 0% ~ 90% non-condensing

Computer Requirements:

• CPU 2.0GHZ or above (suggested 3.0GHz)
• Memory Size 256MB or above (suggested 1.0GHz)
• Display Card 64M or above
• Supported OS Microsoft Windows 2000/XP/Vista/7
• Browser IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

Certification:

• CE, FCC, RoHS

Warranty:

• Limited 1-year warranty

What's Included

• Apexis Camera APM-H602-MPC-WS
• CD-Driver
• Network Cable
• Power Adapter
• Antenna
• User manual
