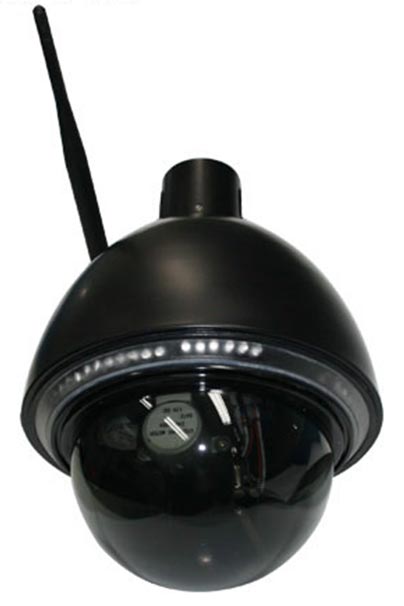

Description (Model: APM-H902-Z-MPC-WS) - Black

New Feature:

• Supporting 3x Optical Zoom
• 4" compact design
• Support IR CUT
• Iphone / Android APP downloadable (app.: Apexis IP Control)
• Support Gmail/Hotmail function
• 8 preset positions monitoring
• Free DDNS for Remote viewing
• Freely control alarm sound ON/OFF
• Freely control alarm record ON/OFF
• Multi languages for worldwide users

Basic Feature:

• H.264 video compression format
• Support two-way audio function
• Freely control upload image to FTP
• Freely control Pan/Tilt angle by software
• Freely control Pan/Tilt speed by software
• Support up to 9 users online simultaneously
• Motion detection alert with snapshots via email
• Allow remote view record from anywhere anytime
• Multi-level user management with password protection
• Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
• Support both WEP WPA WPA2 encryption for wireless
• Support Mobile phone login from User Interface via browser directly
• Support IE, Safari, Firefox, Google chrome browser or any other standard browsers

Specifications

Image Sensor:

• Image Sensor 1/4" Color CMOS Sensor
• Display Resolution Primary Stream: 1280*720 (30fps), 640*368 (30fps), 320*208 (30fps)
• Lens 3x Optical Zoom(4mm-9mm)
• Mini. Illumination 0.5Lux, F2.0
• Lens Type Glass Lens
• Viewing Angle 30.7°~ 69°

Audio:

• Input 1 channel audio input
• Output 1 channel audio output
• Audio Compression G.711

Video:

• Image Compression H.264, MJPEG
• Image Frame Rate 30fps (VGA), 30fps (QVGA)
• Resolution 640 x 480 (VGA), 320 x 240 (QVGA)
• Flip Mirror Images Vertical / Horizontal
• Light Frequency 50Hz, 60Hz, Outdoor
• Video Parameters Brightness, Saturation, Contrast, Hue

Communication:

• Ethernet Interface Build in 10/100Mbps, Auto MDI/MDIX , RJ-45
• Supported Protocol TCP/IP, HTTP, DNS, DHCP, PPPoE, SMTP, FTP, SSL, TFTP, NTP, ARP/RARP, NFS, RTSP, RTP, RTCP
• Compress rate level 128Kbps~4Mbps
• Wireless Standard IEEE 802.11b/g/n
• Data Rate 802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.), 802.11n: 150Mbps (Max.)
• Wireless Security WEP & WPA WPA2 Encryption

Physical:

• Pan/Tilt Angle Horizontal:355° & Vertical: 90°
• Alarm Input 1 Channel on/off Input
• Alarm Output 1 Channel relay Output
• Infrared light 66 IR LEDs, night visibility up to 15 meters

Power:

• Power Supply DC 12V/2.0A (included AU-NZ adapter; other types optional)
• Power Consumption 10 Watts (Max.)

Environment:

• Operate Temper 0°C ~ 55°C
• Operating Humidity 20% ~ 85% non-condensing
• Storage Temper -10°C ~ 60°C
• Storage Humidity 0% ~ 90% non-condensing

Computer Requirements:

• CPU 2.0GHZ or above (suggested 3.0GHz)
• Memory Size 256MB or above (suggested 1.0GHz)
• Display Card 64M or above
• Supported OS Microsoft Windows 2000/XP/Vista/7/MAC OS
• Browser IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

Certification:

• CE, FCC, RoHS

Warranty:

• Limited 1-year warranty

What's Included

• Black Apexis Camera APM-H902-Z-MPC-WS
• CD-Driver
• Network Cable
• Power Adapter
• Antenna
• User manual
• Accessories
